Plain grommets are a standard-style grommet. Useful in a variety of applications, simply pre-punch the correct sized hole in your fabric and set using a hand, bench press, or pneumatic setter.

Sold by the gross.

Bulk purchase discounts when buying:

• 10-24 gross
• 25+ gross

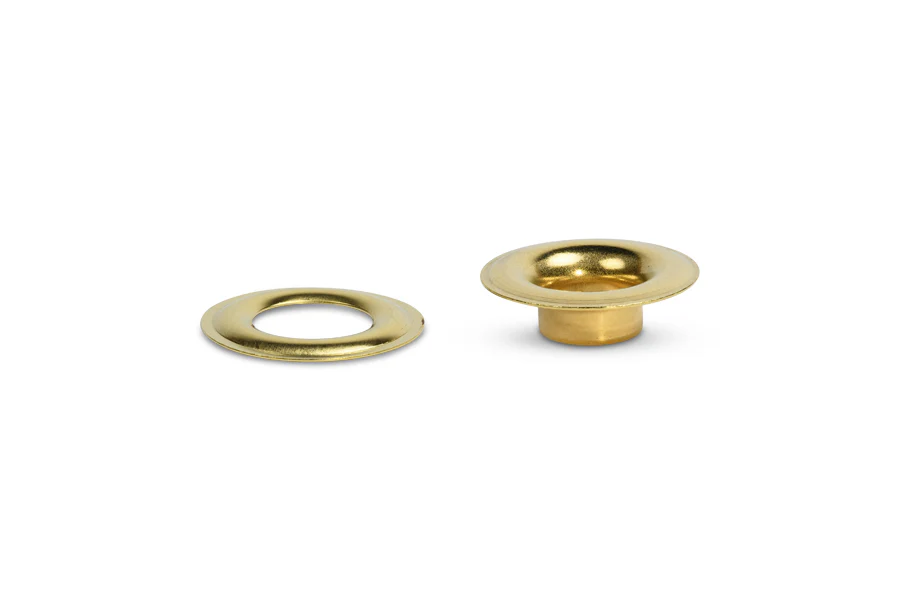

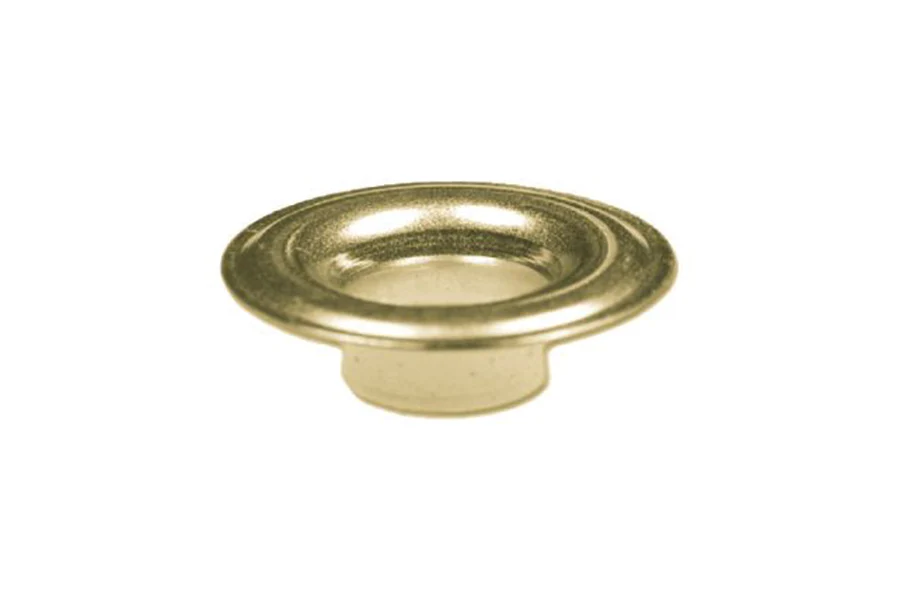

Specifications: Brass Sheet Metal Grommet with Plain Washer

	P-00 - 5/32 in.	P-0 - 1/4 in.
Material	Brass	Brass
Hole size	3/16 (0.1875) in.	1/4 (.025) in.
Flange diameter	0.425 in.	0.545 in.
Length under flange	0.135 in.	0.175 in.
Sold	By the Gross	By the Gross

	P-1 - 5/16 in.	P-2 - 3/8 in.
Material	Brass	Brass
Hole size	9/32 (0.28125) in.	3/8 (0.375) in.
Flange diameter	0.687 in.	0.815 in.
Length under flange	0.185 in.	0.215 in.
Sold	By the Gross	By the Gross

	P-3 - 7/16 in.	P-4 - 1/2 in.
Material	Brass	Brass
Hole size	7/16 (0.4375) in.	1/2 (0.50) in.
Flange diameter	0.970 in.	1.050 in.
Length under flange	0.295 in.	0.374 in.
Sold	By the Gross	By the Gross

	P-5 - 5/8 in.
Material	Brass
Hole size	5/8 (0.625) in.
Flange diameter	1.220 in.
Length under flange	0.330 in.
Sold	By the Gross

Video: Brass Rolled Rim Grommet with Spur Washer
